| Place of Origin: | china |
|---|---|
| Brand Name: | Dade |
| Certification: | ISO9001 Quality Management System Certification |
| Model Number: | DZ-20 |
| Minimum Order Quantity: | 1 unit |
| Price: | Discussion |
| Packaging Details: | Packaging dimensions: 69*41*49CM. Weight 28Kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 units |
| Product Name: | Tilting Multifunctional Pellet Making Machine | Model: | DZ-20 |
|---|---|---|---|
| Voltage: | 220V (customizable To 110V) | Frequency: | 50HZ |
| Pellet Making Power: | 0.18KW | Electric Heating Power: | 1000W |
| Speed: | 1400r/min | Pellet Diameter: | 4-8mm (one Out Of Five) |
| Yield: | 1-10kg/h | Weight: | 28Kg |
| Highlight: | Small Chinese Pill Making Machine,Electric Chinese Pill Making Machine,Chinese Pill Making Machine 1440rpm |
||

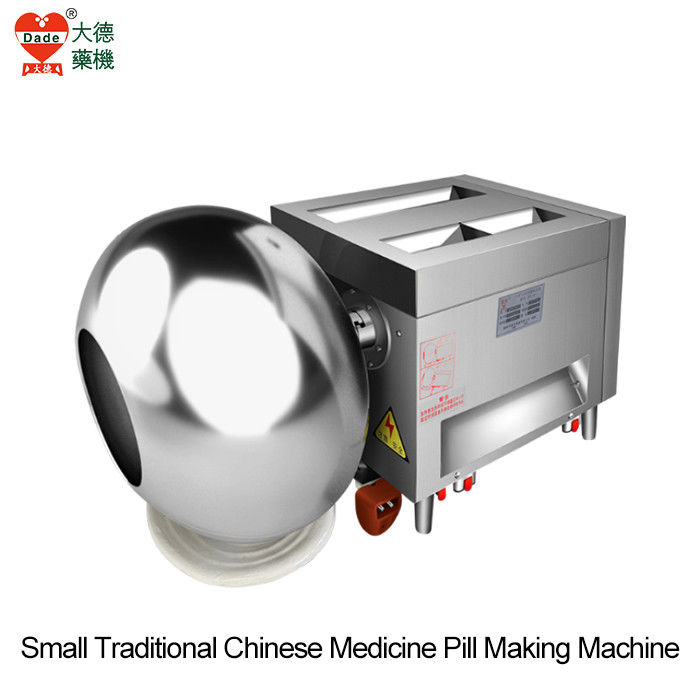

Small Electric Chinese Pill Making Machine
Introduction to the function of the pill making machine:
This product can be used to make various traditional Chinese medicine formula powders into pills. This machine belongs to continuous feeding operation, with a simple and elegant structure, easy operation, and uniform pill size. It is suitable for use in various related processing places such as traditional Chinese medicine research institutes, research institutions, hospitals, clinics, and health workshops.
Function:
Can produce honey balls, watery honey balls, watery balls, concentrated balls, pearl balls, and pill like food.
Working principle:
The motor drives the gears to rotate, and the gears drive the four shaft cutters to rotate. Then, the dough mixed first is pressed into cakes, then into strips, and then into pellets. Then, it is dried or polished to complete the production of finished pills.
Applicable scope:
Suitable for small pharmaceutical factories, trial rooms of large traditional Chinese medicine factories, research institutes of traditional Chinese medicine, research institutions of traditional Chinese medicine, hospitals, private clinics, traditional Chinese medicine stores (rooms), on-site processing of nutritional product sales website counters, and development of pill shaped food in food factories.
Parameter Table:
|
Product Name |
Tilting multifunctional pellet making machine |
|
model |
DZ-20 |
|
voltage |
220V (customizable to 110V) |
|
frequency |
50HZ |
|
yield |
1-10 kg/h |
|
Pellet making power |
0.18Kw |
|
Electric heating power |
1000w |
|
speed |
1400(r/min) |
|
Pellet diameter |
4-8mm (one out of five) |
|
weight |
28Kg |
After sales time:
Free one-year warranty.
Design structure:
